Houdini And RenderMan

What's on this page:

• colorAlpha -- exporting color & alpha
• BMRT -- Houdini & BMRT
• Space Crib -- my space crib animation
• Particles & RiBlobby

  ---

  Houdini is a 3D animation and effects program with good hooks to RenderMan. It is one of the most powerful particle systems, I have seen. Houdini comes with a renderer, Mantra, and with the release of Houdini-2.5, mantra is really zippy. With Houdini it is possible to make material networks, that can create RenderMan shaders on the fly.

  For the moment, I am taking a purist approach, where I already have my own shaders and want Houdini to use them. NOTE: By doing this, I am sacrificing some of Houdini's power. As there are plenty of neat things that can be done, easier and perhaps quicker, by working with Mantra. But as this is a RenderMan site... So far the only non-SideFX web site that I am aware of is: Houdini Tips. -- Actually, it seems as though this page is going to go away. Another place to try, is od[force].

  Also, keep in mind, that I have just started to learn Houdini. If you notice, I am doing something wrong or you have some of your own examples, let me know!

  ---

  Exporting color & alpha

  In the Materials-Editor, change the "Difuse color" to you want Cs to be. Set the "Transmit color" for your opacity, Os. Then on the geomtry-object's SHADING PAGE, set the material to match the one you just set. Say the "Diffuse color" was set to RGB (.7 0 0) and "Transmit color" was (.5 .5 .5), the RIB for that object would give:

  Color [0.7 0 0]
  Opacity [.5 .5 .5]


  Which would be read into the shader as: Cs and Os respectfully.

  ---

  Houdini and BMRT

  Yes, it is true, it is fairly easy to get Houdini to use BMRT for rendering. The Houdini Tips link has a pretty good description of what to do. Soon, I will be posting a perl "RMANDS" script, so the Houdini dialog script box will work with BMRT shaders.

  ---

  Examples

  Space Crib

  The following is my first Houdini animation. It is a work in progress. There are two versions, the first is a BMRT version. Next I will follow it up with a prman version. There are still some work left do to: No sound, doorway is pretty boring, also maybe add another planet to keep the smaller one company.

  These animations use the following nonstandard shaders:
  LGParquetPlank, TLSaturn, TLRing, TLTerranNWhite, KMTerranbump, KMPlanetclouds, wood2(included in BMRT distribution), RCGlow, uberlight, and LCStarfield(An antialiased starfield shader).

  These shaders can also be found in: scShaders.tgz (a gzipped tar file)

  First are some BMRT stills:

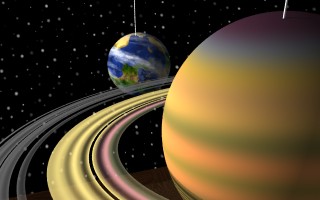

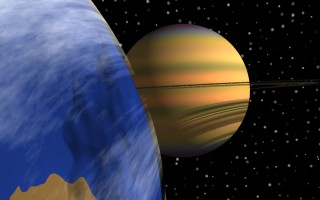

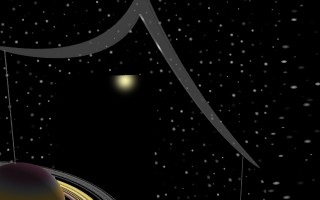

  sc.0017.rib.gz sc.0069.rib.gz sc.0149.rib.gz

  scbm.mpg (150 frame 320x200 mpeg animation --1.1M)

  scbm.tar.gz -- houdini HIP file.

  ---

  prman stills:

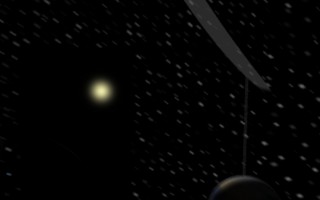

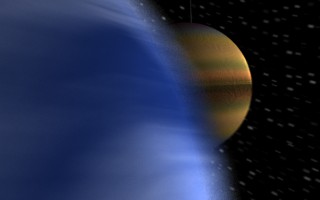

  sc.0017.rib.gz sc.0079.rib.gz sc.0136.rib.gz

  ---

  Particles & RiBlobbys,

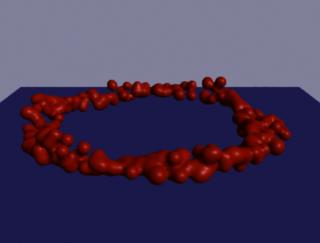

  Particles are Houdini's "bread and butter". This compressed hip is a slightly modified version of the particleRing SOP demo. If you change the bl_particle_ring OP to emit particles as spheres; emit RIB; and run the part2blob.pl script; it will create a set of ellipsiod RiBlobbys.

  Instead if you changed the particle-sop to emit "lines", then the converor will emit segment RiBlobbys.

  ---
